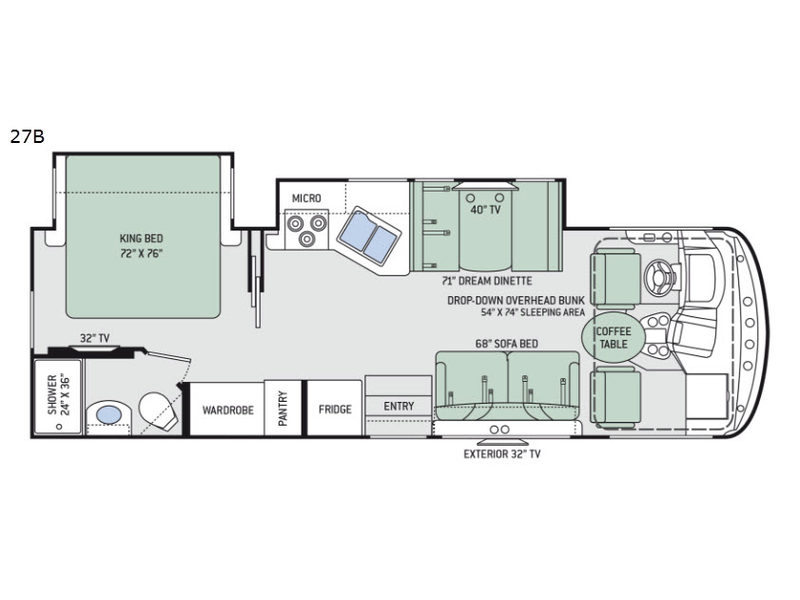

27B Floorplan
Specifications
| Sleeps | 7 | Slides | 2 |
| Length | 29 ft 3 in | Ext Width | 8 ft 3 in |
| Ext Height | 12 ft 2 in | Int Height | 7 ft |
| Hitch Weight | 8000 lbs | GVWR | 18000 lbs |
| Fresh Water Capacity | 50 gals | Grey Water Capacity | 40 gals |
| Black Water Capacity | 40 gals | Tire Size | 19.5" |
| Furnace BTU | 30000 btu | Fuel Type | Gas |
| Miles | 23420 | Engine | Triton 6.8L V10 |
| Chassis | Ford F-53 | Horsepower | 320 hp |
| Fuel Capacity | 80 gals | Wheelbase | 190 in |
| Number Of Bunks | 1 | Available Beds | King |
| Torque | 460 ft-lb | Refrigerator Type | Double Door |
| Cooktop Burners | 3 | Shower Size | 24" x 36" |
| LP Tank Capacity | 88 lbs | Water Heater Capacity | 6 gal |
| Water Heater Type | DSI Gas/Electric | AC BTU | 15000 btu |
| Basement Storage | 73 cu. ft. | TV Info | LR 40" LED, BR 32" LED, Ext. 32" LED |
| Awning Info | 18' Legless Lateral Power Awning with Integrated LED Lighting | Gross Combined Weight | 23000 lbs |
| Shower Type | Standard | Electrical Service | 30 amp |
| VIN | 1F65F5DY7J0A16525 |
Description
Thor Motor Coach Windsport class A gas coach highlights:
- King Denver Mattress
- Cab Drop-Down Bunk
- Exterior TV
- Two Slides
- Rear Bath
Imagine traveling to see family in another state or heading to your kid's soccer tournament in this Windsport class A gas coach. This unit features a sofa bed, and a Dream Dinette, providing enough space to visit with family or friends. You will find six seat belts, and sleeping space for seven in this coach. The chef of the family will love the kitchen with a three burner cooktop, and a microwave for quick meals. You'll appreciate the large wardrobe and pantry in the kitchen area for valuables and dry goods. This model also includes two slides, giving you just that little bit of extra room you need to feel at home. If you enjoy relaxing while watching television, you will find a 40" and 32" TV inside, and a 32" TV outside!
You will find there is much to love about the Windsport class A gas coaches, whether you are out for a long road trip across the country, or a weekend reunion with family. All Windsport models feature Leatherette furniture, solid surface kitchen countertops, and raised panel upper cabinet doors with nickel finish hardware and glass inserts on select doors. With the swivel and reclining captain's chairs featured in these coaches, you can easily bring them into the conversation area in the living space once parked. Each unit includes a dash workstation with 110-volt and 12-volt outlets at the passenger side for those who need to take work with them on the road, or for those who just enjoy surfing the internet. On the outside, enjoy Robocast storage compartments, an outdoor shower, and a legless lateral power awning with integrated LED lighting. Make any Windsport class A gas coach by Thor Motor Coach your new home-away-from-home today!
Features
Standard Features (2019)
Construction & Exterior
- Ford® F-53 Chassis - 6.8L Triton® V10 Engine, 320HP, 460 lb.-ft. Torque
- 8,000-lb. Trailer Hitch with 7-pin Round Connector
- Automatic Leveling Jacks with Touchpad Controls
- Welded Tubular Steel Floor
- Welded Tubular Aluminum Roof and Sidewall Cage Construction
- Vacu-Bond Laminated Roof, Walls & Floor with Block Foam Insulation
- One-Piece Fiberglass Front and Rear Caps
- One-Piece Windshield
- HD-MAX® Exterior with Graphics Package
- Partial Paint on HD-MAX® Exterior with Graphics Package (Optional on all models)
- Rotocast Storage Compartments
- Side-Hinged Flush Mount Radius Compartment Doors
- Premium One-Piece TPO roof
- Legless Lateral Power Patio Awning with Integrated LED Lighting
- Power Entry Door Awning (34R)
- Slide Out Topper Awning(s)
- Roof Ladder
- Electric Entry Step
- Entry Door with Dead Bolt Lock
- Exterior Grab Bar Handle
- Frameless Windows
- Frameless Dual Pane Windows (Optional on all models)
- Petlink Multi-Purpose Tie Down
Automotive & Cockpit
- 10" Touchscreen Dash Radio with Bluetooth with iGo primo Navigation
- Heated/Remote Exterior Mirrors with Integrated Side View Cameras
- Back-Up Monitor
- Cruise Control
- Tilt Steering Wheel
- Privacy Curtain on Side Windows
- Power Privacy Shade and Sunvisor at Windshield
- Map Lights
- Dash Fans
- Drink Holders
- Stow Away Coffee Table
- Dash Workstation with 110-volt & 12-volt Outlets
- Generator Start Switch on Dash
- Emergency Engine Start Switch
- Three-Point Seatbelts for Driver and Passenger
- Reclining/Swivel Leatherette Captain's Chairs
- Power Drop-Down Hide-Away Overhead Bunk with Cotton Cloud™ Mattress & Bunk Ladder
- Conversation Mirrors in Front Overhead Cabinets
- Power Driver's Seat
- Fog Lights
- 19.5" Tires w/ Stainless Steel Wheel Liners
- Valve Stem Extenders on Rear Wheels
Interior
- Rubber Tread Entry Steps with Lighted Step Well
- Metal Entry Grab Handle
- 84" Interior Ceiling Height
- Residential Vinyl Flooring
- Fire Extinguisher
- Smoke, LPG, Carbon Monoxide Detectors
- Ceiling Ducted Air Conditioning System
- Raised Panel Upper Cabinet Doors with Nickel Finish Hardware & Glass Inserts on Select Doors
- Full Extension Metal Ball-Bearing Drawer Guides
- LED Lighting
- Hard Vinyl Ceiling
- Leatherette Expanding Sofa w/ Hide-a-Bed (35M)
- Leatherette Sofa Bed (N/A 35M)
- Leatherette "Theater Seats" with Integrated Footrests (34R)
- Dream Dinette® Booth with Cup Holder
- Dinette Storage Drawer (In Rear Facing Dinette) (N/A 29M)
- Passenger Seatbelts in Select Areas
- Window Privacy Shades
Interior Option
- Single Child Safety Tether in Dinette
Kitchen
- Double Door Refrigerator (27B, 29M)
- 11 cu. ft. Residential Refrigerator with Ice Maker (34J, 34R, 35M, 33X)
- 3-Burner Gas Cooktop/Oven with Bi-Fold Glass Cover
- 30” Over-the-Range Microwave Oven
- Solid Surface Countertops & Pressed Laminate Dinette Countertop
- Decorative Glass & Tile Backsplash
- Large Double Bowl Sink with Single Handle Faucet & Pull-Down Sprayer
- Pantry (27B, 34J, 35M, 33X)
- Ball Bearing Drawer Guides
- 12-volt Attic Fan with Cover
Bedroom & Bathroom
- Denver Mattress® King Size Bed
- Bedroom 12V Outlet for CPAP Machine
- Bedroom 110V Outlet on Inverter for CPAP Machine (N/A 27B, 29M)
- Bunk Beds in Hallway Slide Out (34J)
- Foot Flush Porcelain Toilet
- Skylight in Shower
- Shower with Glass Door
Bedroom & Bathroom Option
- 12-volt Attic Fan with Cover in Bedroom (27B & 29M Only) (N/A on 29M when Dual 13,500 BTU Roof Air Conditioners are Optioned)
Entertainment
- 40” LED TV in Living Room
- 50" LED TV in Living Room (34R)
- 32" LED TV in Bedroom
- Exterior 32” LED TV on Swivel Bracket, Soundbar & Radio
- Blu-Ray Player in Living Area
- 15.5” & 24” LED TVs & DVD Player in Bunk Bed Area (34J)
- HDMI Video Distribution
- Satellite Dish Ready
- Cable TV Ready
- Digital TV Antenna
- Exterior Kitchen with 2.6 cu. ft. Refrigerator & Sink (29M, 34J)
- Exterior LP Connection
- Power Charging Center for Electronics
- Speaker in Sofa Overhead
Electrical & Plumbing
- Onan RV QG 4000 Gas Generator (27B, 29M)
- 30-amp Detachable Shoreline Power Cord (27B, 29M)
- 50-amp Detachable Shoreline Power Cord, Dual 13,500 BTU Roof Air Conditioners, and Onan® RV QG 5500 Gas Generator (12-volt Attic Fan N/A on 29M when Optioned) (34J, 34R, 35M, 33X)
- Second Auxiliary House Battery
- Solar Charge Controller - Solar Panel Ready
- Battery Tray that Holds up to Four Batteries (34J, 34R, 35M, 33X)
- 15,000 BTU Front Roof Air Conditioner (27B, 29M)
- Battery Disconnect Switch
- 6-gallon DSI Gas/Electric Water Heater
- Water Heater Bypass System
- Enclosed & Heated Holding Tanks (N/A 29M, 33X)
- Enclosed Holding Tanks with Heat Pads (29M, 33X)
- Black Tank Flush System
- Stackable Washer/Dryer Prep (33X, 34R, 35M)
- Automatic Generator Start
- 1800-watt Inverter (33X, 34J, 34R, 35M)
- 1000-watt Inverter (27B, 29M)
- Outside Shower
- 360 Siphon RV Holding Tank Vent Cap
- 1" Fresh Water Tank Drain
- Multiplex Lighting and Systems Control
- WIFI Ranger/WIFI Extender
Please see us for a complete list of features and available options.
All standard features and specifications are subject to change.
